KML HB40 Led High Bay Light Factory Manufacturer
Product Overview

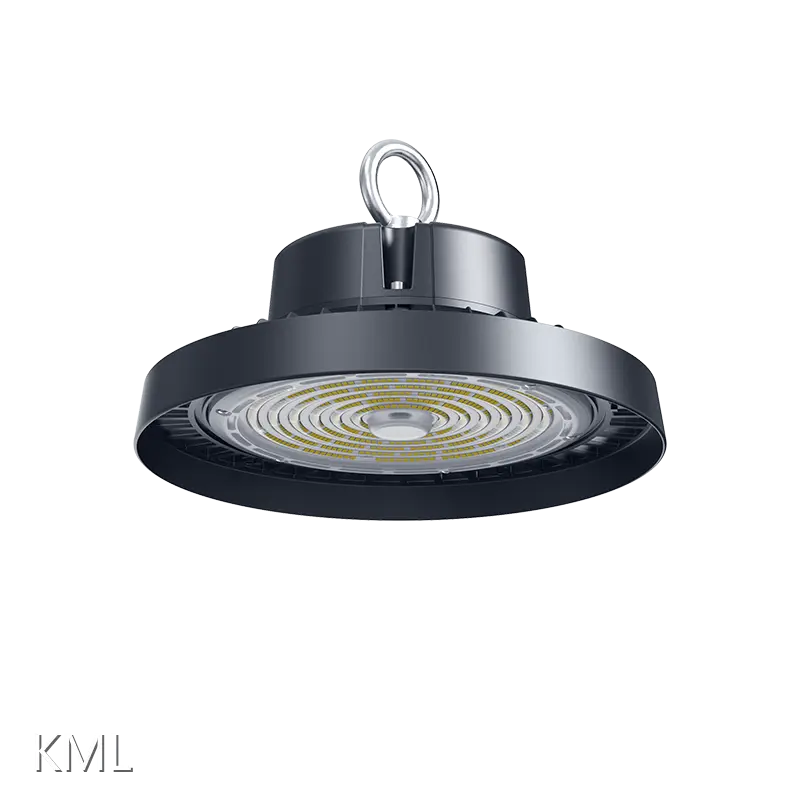

- KML HB40-100 is a 100W LED high-bay fixture designed and manufactured by KML for large indoor and semi-outdoor industrial spaces. Key specs: 140 lm/W efficacy (14,000 lm), IP65 rating, SMD2835 LEDs, selectable CCTs 3000K–6500K, beam angles 30°/60°/90°/120°, operating range -30°C to +40°C and 10–90% RH, input AC120–277V, rated life L70/B10@100,000 hours and 5-year warranty.
Product Features
- High luminous output and selectable optics: 14,000 lm at 100W with four beam angles to focus or flood light as required.
- Robust mechanical and thermal design: aluminum body for efficient heat dissipation and IP65 protection against dust and moisture.
- Wide environmental tolerance: reliable operation across broad temperature and humidity ranges.
- Smart control options: adjustable power, optional 0–10V dimming, microwave and infrared sensing.
- Quality components: CRI Ra≥70 (Ra≥80 optional), low color tolerance SDCM
Product Value
- Energy and cost savings: 140 lm/W efficacy saves over 50% energy versus traditional fixtures and reduces total lifecycle costs by ~30%.
- Long service life and low maintenance: 100,000-hour L70 rating reduces replacements and downtime.
- Design flexibility and project fit: multiple beam angles, CCTs, and customizable appearance/color temperature to match design needs.
- Compliance and procurement-ready: CE and RoHS certified to meet European procurement and carbon-neutrality requirements.
Product Advantages
- Factory-grade manufacturing and quality control for stable, reliable performance.
- Comprehensive certifications (CE, RoHS) and strong customization capabilities.
- Superior color performance (low SDCM, high CRI option) to render true object colors.
- Durable for harsh/variable environments thanks to IP65 and aluminum heat-sink construction.
- Multiple intelligent control and dimming choices enable energy management and automation.
Application Scenarios
- Large indoor industrial and commercial spaces: factories, warehouses, production halls, distribution centers, gymnasiums and stations.
- Semi-outdoor and heavy-duty locations: ports, docks, construction sites, parking areas, building facades and billboards.
- Public venues and emergency use: sports venues, plazas, airports (auxiliary lighting), emergency and disaster relief sites.
Safety/installation notes (brief): install on mounts able to bear >4× the fixture weight, operate within specified temperature/humidity ranges, disconnect power before maintenance, and follow packaging/loading guidance for transport.
