Product Overview

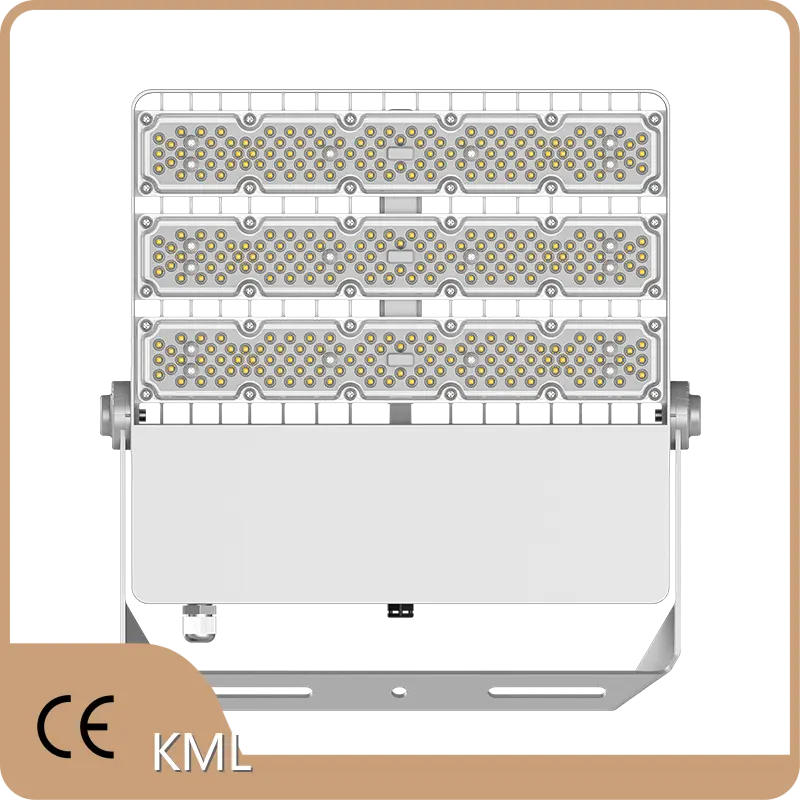

- KML FL2C LED Flood Light (example model FL2C-150) is a high‑efficacy outdoor/industrial floodlight range designed for customizable, project‑specific lighting. Typical spec (FL2C-150): 150 W, 25,500 lm, 170 lm/W, AC100–277 V, IP66, die‑cast aluminum housing with PC components, SMD3030 LEDs, CCT options 3000–6500 K, CRI Ra≥70 (Ra≥80 optional), rated L70/B10@100,000 h, 5‑year warranty. Power range available: 50 W–1000 W.
Product Features
- High luminous efficacy (170 lm/W) and high output (e.g., 25,500 lm at 150 W).
- Multiple beam options: 30°, 60°, 90°, 80°×140° and asymmetric optics for targeted area lighting.
- Rugged IP66 design with aluminum heat sink, salt‑spray and high‑temperature resistance; operating temperature −40°C to +50°C.
- Smart control options: DALI, DMX512, and 0–10 V dimming (optional).
- Practical mechanical design: built‑in waterproof vent to prevent condensation and gear‑meshing bracket for precise angle adjustment.
- Customizable: color temperature, bracket shape, and exterior color.
Product Value
- Significant energy and cost savings: up to ~60% energy reduction versus traditional lamps and around 40% total cost reduction thanks to high efficacy and long life.
- Long service life and reduced maintenance: L70/B10@100,000 h lowers replacement frequency and lifecycle costs.
- Compliance and procurement readiness: CE and RoHS certified, suitable for carbon‑neutral procurement projects.
- Flexible design and control: customizable optics/CCT and smart dimming improve lighting quality and operational efficiency for diverse projects.
Product Advantages
- Tailored manufacturing: built to customer specifications with strict quality inspection and advanced production capabilities.
- Robust environmental performance: IP66, corrosion‑resistant materials and wide operating temperature make it suitable for coastal and high‑heat sites.
- Precise aiming and condensation protection: gear‑meshing adjustment and waterproof vent increase installation reliability and longevity.
- Wide product range and optional features: broad wattage/CCT choices, optional higher CRI, and multiple control protocols.
- Backed by experienced manufacturer: strong R&D and technical support, nationwide sales network, and a 5‑year warranty.
Application Scenarios
- Outdoor and large‑area lighting: sports venues, plazas, parks, building facades, billboards and large signs.
- Industrial and commercial: parking lots, warehouses, storage yards, ports and docks, industrial plants.
- Construction and temporary sites: construction sites, emergency and disaster relief lighting.
- Transport and aviation: airport auxiliary lighting and related large‑area illumination.
- Any targeted area lighting need where durable, high‑efficacy, customizable floodlighting is required.
