Cold Storage Led Lighting by KML
Product Overview

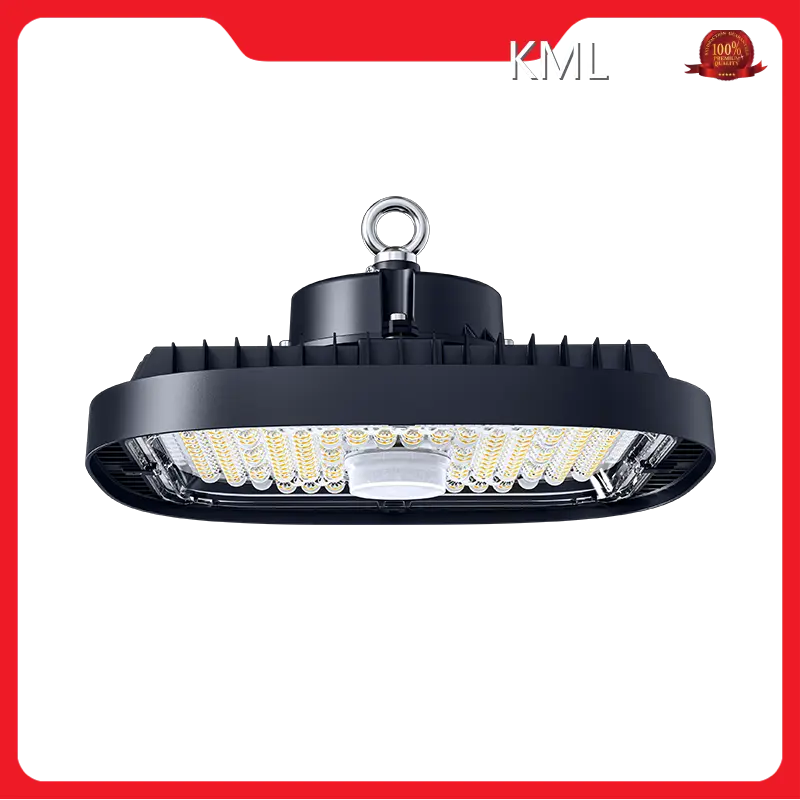

- KML HB30-100 Cold Storage LED Lighting is a purpose-built, high‑efficacy LED fixture for refrigerated and low‑temperature environments. Key specs include 100 W power, 21,000 lm output (210 lm/W), wide AC120–277 V input, and a long life rating (L70B10 @ 100,000 h) with a 5‑year warranty. The product holds CE and RoHS certifications and is engineered for reliable operation across extreme conditions (typical ingress protection IP65–IP66 and operating range −40°C to +50°C, 10%–90% RH).
Product Features
- Multiple beam patterns (60°, 90°, 120°, 30°×70°) and CCT options (3000K–6500K) to match different tasks and layouts.
- Very high luminous efficacy (210 lm/W) and 21,000 lm luminous flux for bright, uniform illumination at low power.
- Cold‑rated construction: aluminum heat sink, durable materials (aluminum/PC/glass), and high ingress protection suitable for wet, cold, and humid spaces.
- Smart control options (microwave and infrared sensing) for on‑demand operation and further energy savings.
- Color quality: low color tolerance (SDCM < 5) and selectable CRI (Ra ≥ 70 standard, Ra ≥ 80 optional) to preserve true object appearance.
- Robust electrical compatibility and safety: wide input voltage, CE/RoHS certifications, and multiple housing color options.
Product Value
- Lower operating costs: >70% energy savings versus traditional fixtures and up to ~40% lower total lifecycle costs through high efficiency and long life.
- Reliable performance in extreme cold and humid environments reduces maintenance, downtime, and product spoilage risk.
- Improved visibility and color fidelity support safer, faster handling, inspection and sorting tasks in cold chain operations.
- Compliance with EU procurement and “carbon neutrality” expectations via CE/RoHS certifications, aiding project approvals and sustainability goals.
- Flexible customization (appearance, CCT, beam angle, controls) allows fixtures to be matched to project design and operational requirements.
Product Advantages
- Certified and quality‑controlled: CE and RoHS, strict quality monitoring and zero‑defect assurance process.
- Customization and variety: selectable beam angles, color temperatures, housing colors, CRI levels, and optional smart controls.
- Engineered for cold: materials and thermal design for −40°C to +50°C operation and high humidity tolerance.
- High durability and uptime: long rated life, robust construction, and a 5‑year warranty backed by an experienced R&D and technical team.
- Easy integration: wide voltage range (AC120–277 V), multiple mounting options, and optional sensor controls to fit existing facility systems.
Application Scenarios
- Cold storage rooms and freezer rooms (including ultra‑low/ blast freezer areas)
- Loading docks, passageways, and loading/unloading areas
- Sorting areas, packaging lines and conveyor zones in cold environments
- Refrigeration machine rooms and equipment rooms
- Support spaces inside cold facilities such as offices, inspection stations and maintenance areas
