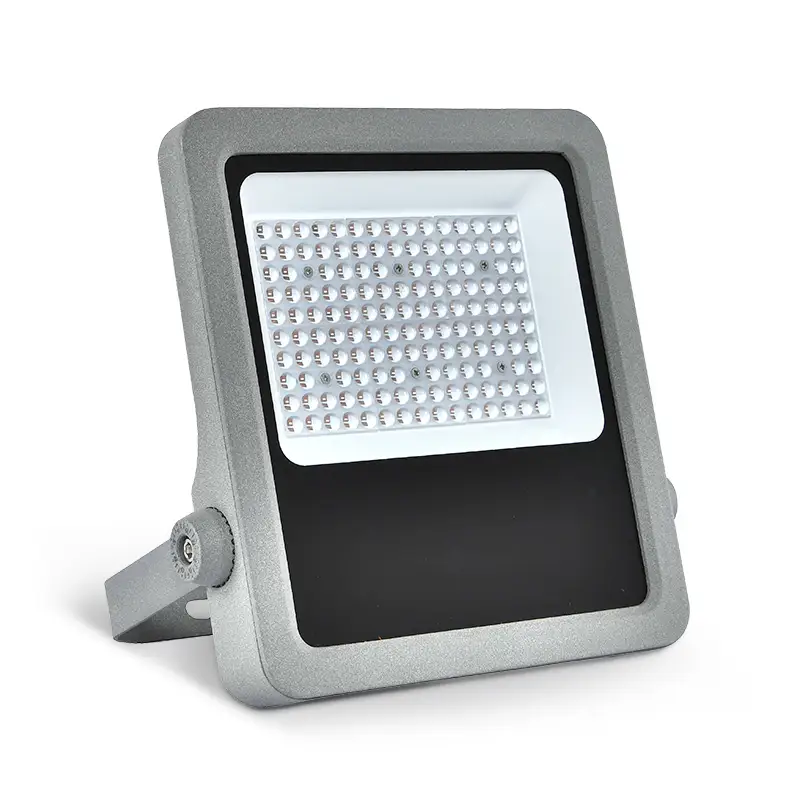

KML-FL05 100W LED flood light supplier for building facades and construction site lighting
KML-FL05 100W, 14,000 lm, multiple optional beam angles and color temperatures, high color rendering index, efficient heat dissipation, and IP65 protection for rugged durability.
5.0
Model:
FL05-100
MOQ:
100pcs
Brand:
KML
Size:
269x318x49mm
Warranty:
5 year warranty
Certification:
CE, RoHS
Price terms:
EXW Dongguan
Place of Origin:
Dongguan, China
Delivery:
Ways Air/Sea as requested
Lead time:
45 days after received deposit and can sample
Payment terms:
TT Full payment before shipment (30% in advance, and the rest payment before shipment.)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Frequently Bought Together
Total price discount:
Advantage
Comprehensive Green Certifications
CE and RoHS certified, meeting procurement standards for ""Carbon Neutral"" projects.
Customization Capabilities
Supports customization of color temperature, bracket shape, and exterior color to meet unique project design requirements!
Precise Light and Color Control
Ra ≥ 70 color rendering index, reproducing the true colors of buildings and products, enhancing the visual value of commercial spaces!
a-100w
Multi-scenario application
30°|60°|90°|120°|Type II|Type III| asymmetric light beam angle and 3000K to 6500K color temperature, suitable for application in building facades, construction sites, and other places.
Durable in Extreme Environments
IP65 protection and an aluminum heat sink structure offer salt spray and high-temperature resistance, making them suitable for use in harsh environments such as high temperatures and coastal areas.
Outstanding Energy Efficiency
140lm/W of high luminous efficacy, saving over 50% energy compared to traditional lamps and reducing lifecycle costs by 30%!
Areas of application
Sports venues; Plazas and parks; Construction sites; Building facades; Parking lots and storage areas; Ports and docks; Industrial plants; Emergency and disaster relief sites; Billboards and large signs; Airports (auxiliary lighting).
CASE1 (1)
Product features
● Focusing on Small Areas
30° |60° |90° |120° |Type II|Type III| asymmetric light beam angles precisely cover building facades, construction sites, and other areas. 100W power output 14,000lm, highly bright and energy-efficient.
● Adaptable to Complex Environments
IP65 protection and die-cast aluminum heat sinks withstand both outdoor wind and rain and indoor dust, operating stably from -30°C to +40°C.
● Adaptable to Lighting and Power Requirements
Adjustable color temperature from 3000K to 6500K, with 50%, 75%, and 100% adjustable power, one lamp can meet multiple needs!
Specifications
Product Parameters
ErP Technical Specification
| Model No. | FL05-100 | Housing Color | Black | Gray |
| Input Power | 100W | IP Rating | IP65 |
| Lumen Output | 14,000 lm | Material | Aluminum, PC, Glass |
| Efficacy | 140 lm/w | Operating Temperature | -30°C to +40°C |
| Input Voltage | AC120-277V, 50Hz | 60Hz | Operating Humidity | 10% to 90% RH |
| CCT | 3000K | 4000K | 4500K | 5000K | 5700K | 6500K | Control (optional) | Adjustable CCT and Power |
| CRI | Ra≥70 (Ra≥80 optional) | Lifespan | L70B10 100,000 hours |
| LED Chip | SMD3030 | SMD2835 | Warranty | 5 years |
Safety Recommendations
Installation
There are many ways to install this product. The mounting location must be able to withstand a load greater than 4 times the weight of the lamp.
Environment
Please operate within an ambient temperature range of -30°C to +40°C to ensure long-term, effective, and stable operation.
Maintenance
Do not disassemble the lamp without authorization. Disconnect the power supply before performing any maintenance
Loading
Observe the specified packaging and loading quantities to prevent damage during transportation.
Downloads
ZIP (20.8 MB)
ZIP (16.8 KB)
ZIP (1.58 MB)
PDF (1.18 MB)
